Commercial-Grade Wireless HVAC Control: Two Families, One Platform

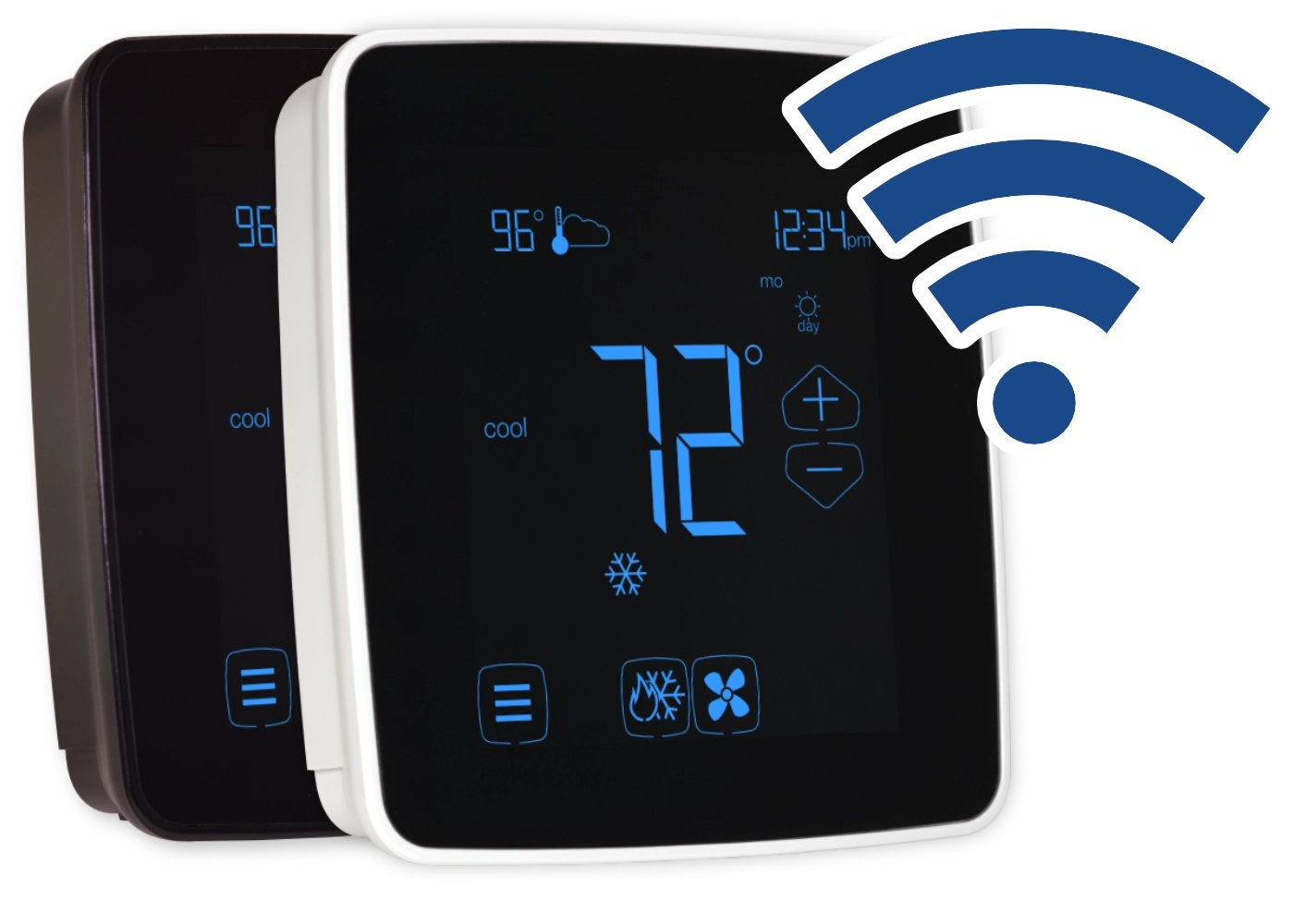

NetX Wi-Fi thermostats deliver the full power of the NetX ecosystem over your existing wireless network with no additional wiring and no compromise on capability. Whether you need maximum integration depth or a focused solution for a specific application, both the X-Series and J-Series are available in Wi-Fi and deliver the same commercial-grade platform: BACnet/IP, Modbus TCP/IP, full-color touchscreen, cloud and local access, and intelligent scheduling.
- Commercial Grade Wi-Fi Thermostat
- Gas/Electric to 2H/2C, Heat Pump to 3H/2C
- Humidity Sensing and Control
- Available CO2 Sensing and Control
- Advanced Remote Sensor Bus
- Full-Color Touchscreen
- 7-Day Programmable ~ 4 Events/Day
- 80 Additional Event Schedules
- Onboard Data Logging
- BACnet/IP and Modbus TCP/IP Included
Description
X-Series Wi-Fi
The Flagship Workhorse for Maximum Depth and Maximum Control
Built for demanding environments that require the deepest integration and highest staging capacity. Choose the X-Series Wi-Fi when your project demands:
- 7 commercial relays for complex HVAC staging
- Humidification, Dehumidification, Damper, and DCV control
- Full RSBus sensor network with up to 16 remote sensors including temperature, humidity, occupancy, and water leak
- BACnet/IP and Modbus TCP/IP standard; SNMP available on Ethernet models
- Optional on-board CO2 sensing
J-Series Wi-Fi
The Tailored Solution that is Right-Sized for the Application
Designed for projects that need commercial-grade performance in a focused, modular package. Choose the J-Series Wi-Fi when the application calls for a specific hardware configuration:
- J5-WIFI: Standard conventional and heat pump control (2H/2C, 3H/2C) with humidity sensing and dehumidification
- J5F-WIFI: Dedicated 3-speed fan coil unit control (1H/1C conventional, 2H/1C heat pump)
Every networked J-Series includes BACnet/IP and Modbus TCP/IP as standard!
Not sure which series fits your project?
Both families connect to the same NetX-CloudTM platform. The choice comes down to integration complexities and sensor requirements. Let's talk, and we'll help you spec it right.
