Thermostat Families
NetX offers two thermostat families built on the same commercial-grade platform, so you can match the right level of capability to each application without overpaying for features you don't need. The X-Series delivers maximum integration depth for your most demanding environments, while the J-Series provides focused, application-specific control in a smaller package. Both connect to the same NetX Cloud ecosystem and support the same industry-standard protocols, giving you one platform that scales across your entire portfolio.
Two Thermostats, One Powerful Family
| X-Series | J-Series | |
|---|---|---|
 |  | |
| For Complex Rooftop Control and Advanced Sensing | For Focused Equipment Control and Basic Sensing | |
| Models Available | 4 WI-Fi, 4 Ethernet | 6 Wi-Fi, 6 Ethernet, 2 Non-Communicating |
| Touchscreen Interface | Multiple Backlight Colors | White Backlight |
| Humidity | Hum/Dehum Equipment Control | Humidity Sensing / Simple Dehum Control |
| Remote Sensors | Up to 16 6 x Room Temp/Hum, 3 x Aux Temp, 1 x Outdoor, 6 x Water Leak | Up to 2 10K Thermistor Inputs (J5T Only) |
| Fresh Air Damper Control | ✓ | — |
| UVC Equipment Control | ✓ | — |
| Occupancy / Digital Inputs | 2 Digital Inputs + 1 Occupancy Input (up to 10 Occ Sensors) | 1 Digital Input or 1 Occupancy Input (up to 10 Occ Sensors) |
| Optional On-board CO2 | ✓ | — |
| Internal Expansion Port | ||
Optional CO2 Sensing | ✓ | ✓ |
Optional NLC Occupancy | ✓ | ✓ |
| Integrations | ||
| Native BACnet/IP | ✓ | ✓ |
| Modbus TCP/IP | ✓ | ✓ |
| Native SNMPv2 | Ethernet Only | Ethernet Only |
| NetX API | ✓ | ✓ |
| Home Automation Drivers | ✓ | ✓ |
| NetX Cloud + Local Access | ✓ | ✓ |

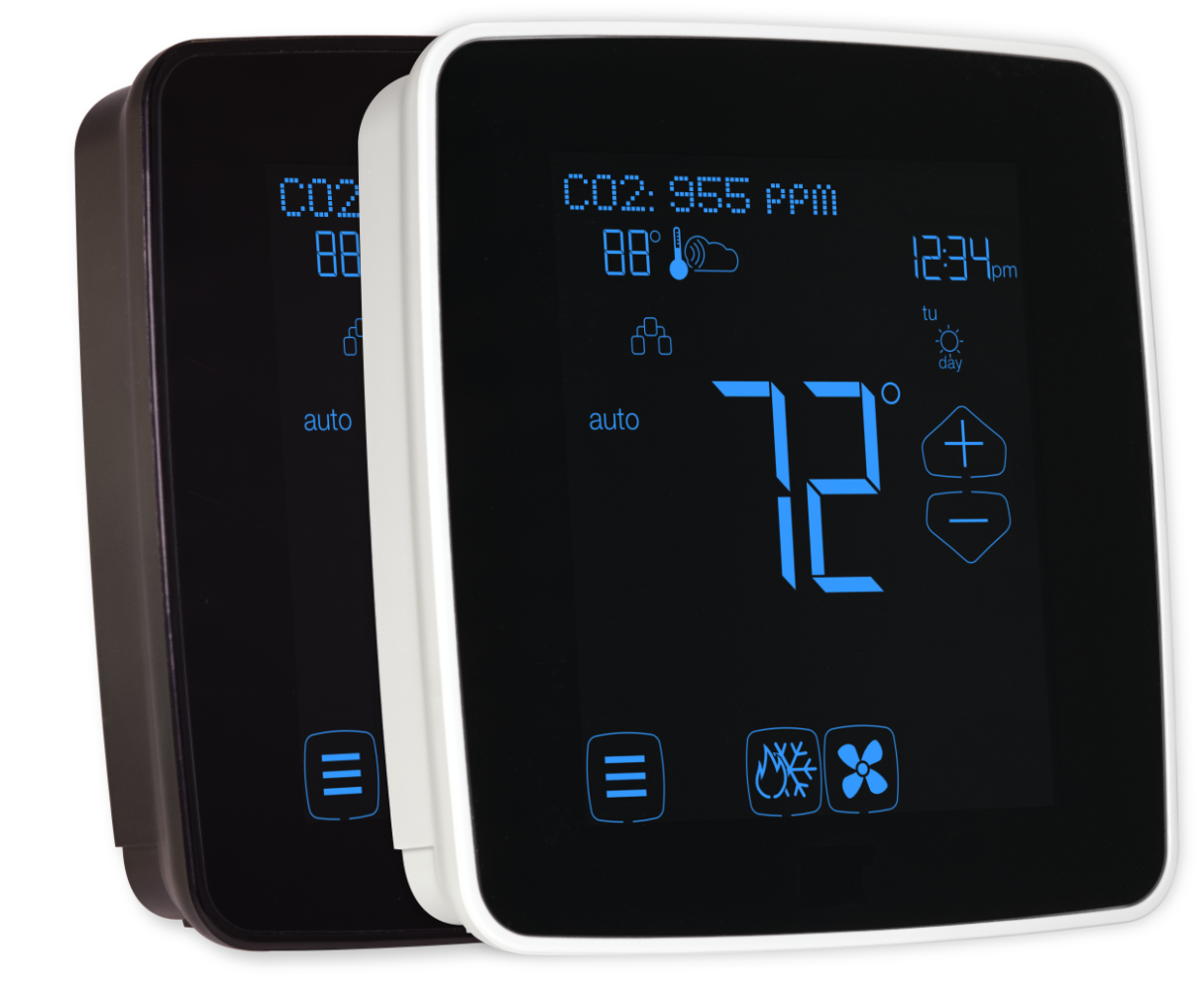

X-Series Thermostats
The Flagship Workhorse of the Commercial Industry
Built for demanding environments that require deep integration and high-capacity staging. The X-Series is the premier solution for critical infrastructure, featuring:
- Deepest Integration: Standardized with BACnet/IP and Modbus TCP/IP for Building Automation Systems (BAS).
- Maximum Control: Equipped with 7 Relays to handle complex HVAC staging, including Humidification/Dehumidification, Fresh Air Damer, and UVC control.
- Rugged Reliability: Designed for 30+ years as the standard for schools, data centers, and corporate headquarters.

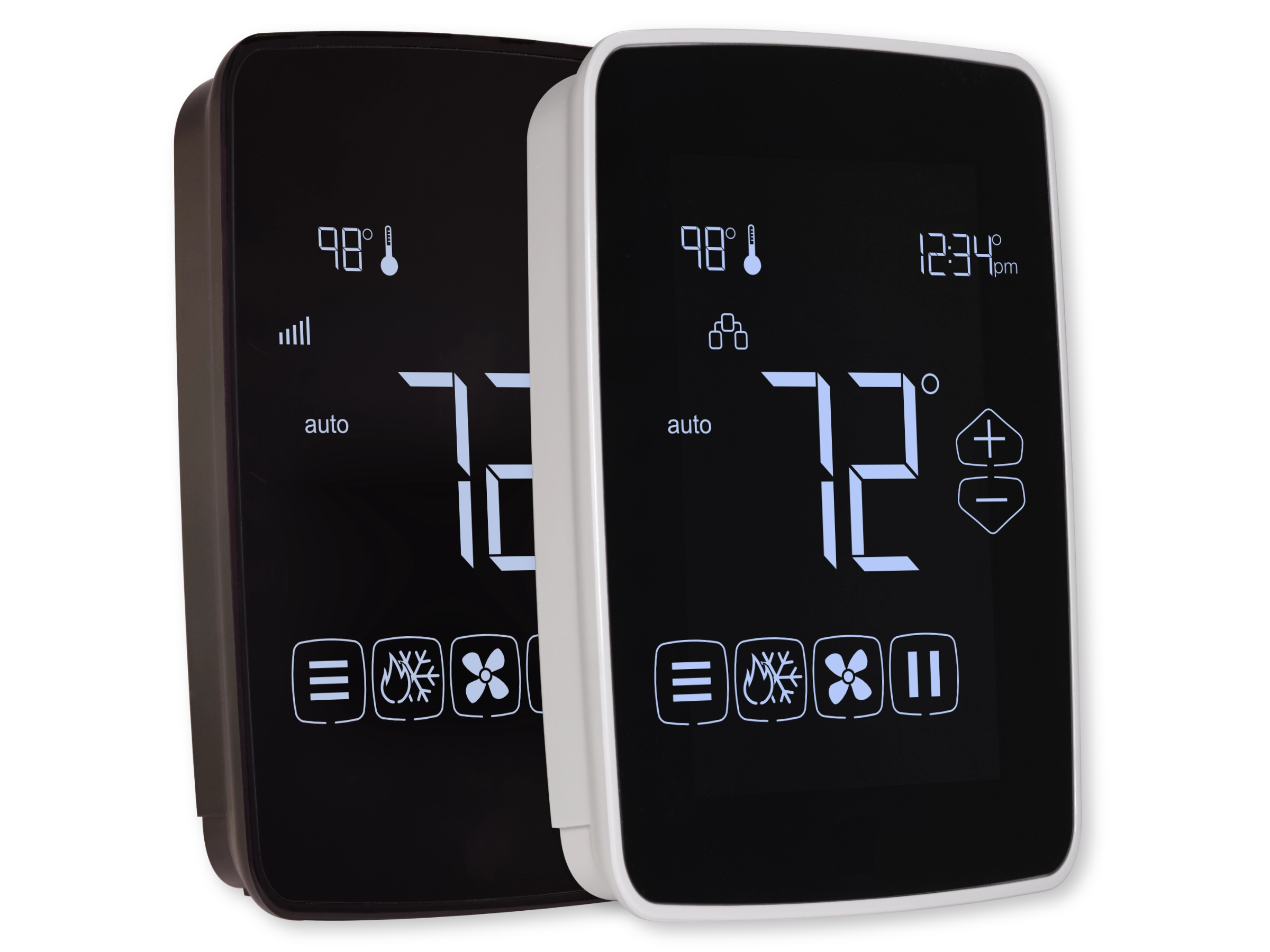

J-Series Thermostats
The Tailored Solutions for Specific Applications
Designed for organizations that need commercial-grade features in a focused, modular hardware package. Avoid overbuilding your project by selecting the specific models you need:
- Application Specific: Choose between the J5 with up to Conventional 2H/2C and Heat Pump 3H/2C control, the J5F with 3-Speed Fan control, the J5T for simple remote temperature addition and 2/4 pipe system control, or the J0S for VAV/VRF and local zone sensing with user touchscreen.
- Tailored Connectivity: Options for Wi-Fi or Ethernet available for industrial reporting and control.
- VAV Leadership: Advanced support for Single-Zone and Multi-Zone VAV/VVT integration.
- Modern Standard: Every networked J-Series includes Humidity Sensing, BACnet/IP, and Modbus TCP/IP as standard features.
